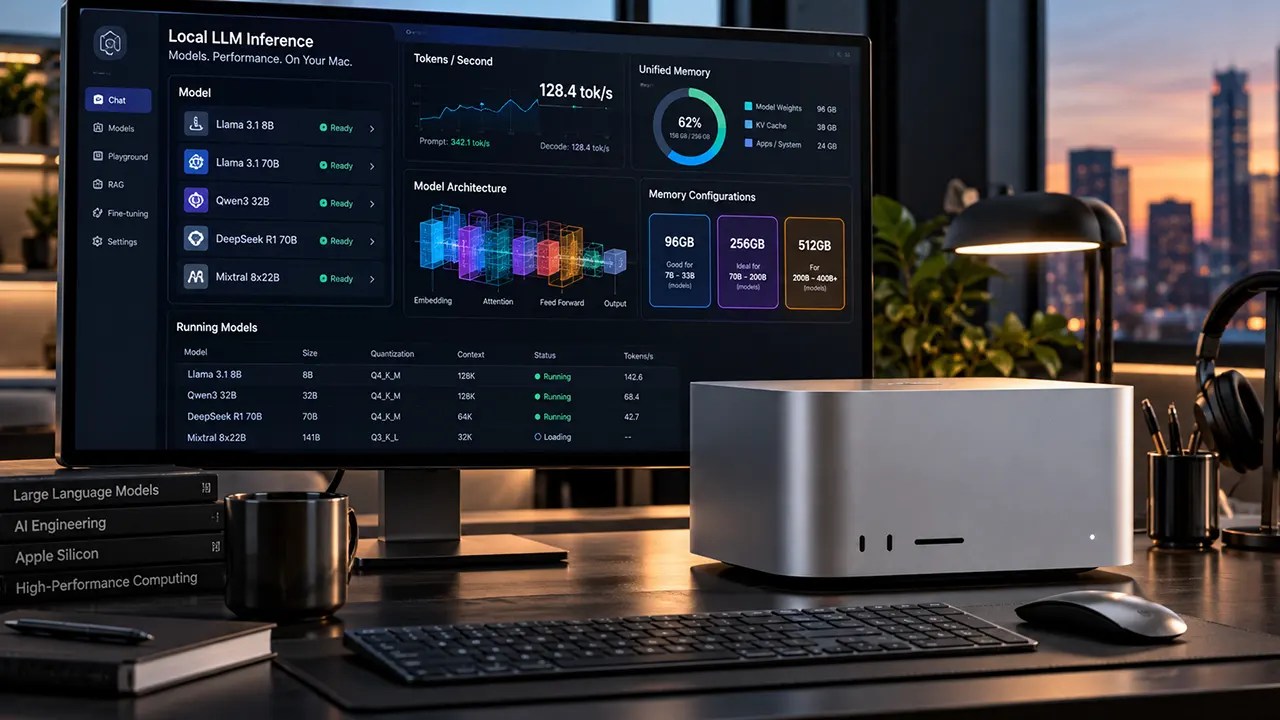

M5 Ultra Mac Studio for Local AI: What Can It Really Run?

The M5 Ultra Mac Studio Local AI is one of the most capable compact computers for local AI inference because it combines up to 512GB of unified memory with 1.2TB/s memory bandwidth. That matters more for very large LLMs than raw CPU or GPU core counts. The key question is not simply whether a model can load, but whether it can run at a useful speed with enough memory left for context and other workloads.

Apple’s M5 Ultra Mac Studio is designed around this exact use case. The highest configuration reaches a 36-core CPU, 80-core GPU, 32-core Neural Engine, 512GB of unified memory, and 1.2TB/s of memory bandwidth. Apple also supports local AI development through its Apple Silicon frameworks, including MLX and Core AI.

This article is based on manufacturer specifications, current independent benchmarks, published model estimates, and technical analysis. It is not a hands-on test of the M5 Ultra.

If you are considering one mainly for local AI, the most important decision is your memory configuration, not simply choosing the fastest M5 Ultra option.

Affiliate disclosure: This article contains an affiliate link. If you buy through a link on this page, we may earn a commission at no extra cost to you.

Why Unified Memory Matters More Than the Core Count

For local LLM inference, memory can become the first hard limit.

A traditional AI workstation often relies on discrete GPUs with their own VRAM. A model has to fit into that available GPU memory, or the workload may need to move data between VRAM and system RAM. The M5 Ultra takes a different approach by using unified memory shared across the processor.

That gives the Mac Studio an unusual advantage: you can configure it with hundreds of gigabytes of memory in one compact machine.

Apple offers the M5 Ultra with 96GB, 256GB, or 512GB of unified memory. The top configuration also provides 1.2TB/s of memory bandwidth.

The practical implication is simple:

For very large local models, memory capacity determines what you can load, while memory bandwidth strongly influences how quickly you can use it.

That distinction explains why the M5 Ultra is so interesting for local AI.

CPU, GPU and Neural Engine Have Different Jobs

The M5 Ultra is not one giant AI accelerator. Its different compute resources serve different purposes.

The CPU handles general-purpose processing, orchestration, application workloads, and parts of AI pipelines. The GPU provides large-scale parallel compute and includes Neural Accelerators. The Neural Engine is designed for specific machine-learning operations.

For local LLMs, however, the memory system deserves special attention because large models repeatedly move enormous amounts of data through memory during inference.

Tom’s Hardware found the M5 Ultra particularly strong in local AI testing and highlighted its 1.2TB/s memory throughput as an important advantage for local models.

Why 1.2TB/s Memory Bandwidth Matters

Imagine a large model whose weights occupy tens or hundreds of gigabytes.

Inference requires the system to repeatedly access those weights. Faster memory bandwidth can therefore improve the rate at which the hardware feeds the computation units.

This is why a simple comparison of GPU core counts can be misleading.

For local AI, the better question is:

How much model data can the system keep accessible, and how quickly can the inference engine move through it?

That is one reason independent M5 Ultra testing has shown especially large improvements in prompt processing compared with earlier Apple Silicon systems.

How Much Memory Does a Local AI Model Really Need?

A model’s parameter count is only the starting point.

The actual memory requirement depends on several factors:

1. Model parameters
2. Weight precision or quantization
3. Context length
4. KV cache
5. Runtime overhead
6. Operating-system and application memory
7. Whether multiple models are loaded simultaneously

A useful mental model is:

Model memory = weights + context/KV cache + runtime overhead + operating-system headroom

That is why saying “a 70B model needs X GB” without specifying precision and context can be misleading.

Model Weights

A model with 70 billion parameters requires vastly different memory depending on how those parameters are represented.

A full-precision model can require enormous amounts of memory. Quantization reduces the memory required by representing weights with fewer bits.

That is what makes large local models practical on systems such as the M5 Ultra.

Quantization Changes the Equation

Common quantization levels include 8-bit and 4-bit formats, although modern model ecosystems offer many variations.

The basic trade-off is:

Lower precision → smaller memory footprint → larger models fit → potential quality or performance trade-offs

Do not interpret that as “4-bit models are bad.” The quality impact depends on the model, quantization method, workload, and task.

For a local-AI buyer, quantization is often what turns an otherwise impossible model into a practical one.

Context Length Can Become the Hidden Memory Cost

The model weights are not the only thing consuming memory.

A long conversation, large codebase, document collection, or agent session creates additional memory requirements through the KV cache.

This creates an important local-AI rule:

A model that fits at a short context may become uncomfortable or impractical at a very long context.

That matters especially for coding agents, research agents, and applications that process large documents.

Why Advertised RAM Is Not the Same as Free AI Memory

A 256GB Mac Studio does not mean that 256GB is available exclusively for model weights.

macOS, the inference engine, applications, caches, context, and other processes also need memory.

That is why the goal should not be to find the largest model that barely fits.

A better target is:

The largest model that fits comfortably while leaving enough headroom for the workload.

Can the M5 Ultra Mac Studio Run These AI Models?

This is where the M5 Ultra becomes particularly interesting.

The following table uses published estimates and current third-party measurements as a planning guide. Estimated numbers should not be treated as guaranteed performance because actual speed varies with the model, quantization, context length, inference engine, and workload.

Model / workload	Approx. configuration	What to evaluate	Practical takeaway
Small local LLM	96GB	Speed	Plenty of memory headroom
27B-class dense model	96GB	Tokens/sec + context	Comfortable local-AI workload
70B-class dense model	96GB+	Memory + speed	Practical with suitable quantization
100B+ models	96GB-256GB	Quantization + context	Strong use case for large-memory Mac
120B-class models	256GB	Memory + inference engine	Serious local-AI workload
200B+ models	256GB	Model format + memory	Possible with suitable quantization
235B-class MoE	256GB	Active parameters + total weights	Interesting high-end workload
400B-class dense model	512GB	Memory + throughput	Fits the extreme local-AI use case
Multiple models	256GB-512GB	Total memory	Large memory becomes the main advantage
Coding agents	96GB+	Prefill + decode + context	Strong fit for local agent workflows

Third-party estimates published for the M5 Ultra include roughly 24 tokens/sec for a 70B-class dense Llama model and around 4 tokens/sec for a 405B dense model, while some MoE models can achieve much higher estimated throughput because only a portion of their parameters are active for each token. These figures are estimates, not universal benchmarks.

That distinction is critical.

Small and Medium Local Models

If you mainly want a private chatbot, coding assistant, summarization tool, or local research assistant, you do not necessarily need the 512GB configuration.

A 96GB system already gives you a large amount of room for smaller and medium-sized models.

The advantage of moving up to 256GB is not simply “more speed.” It is more model flexibility.

70B-Class Models

70B-class models are an important point on the local-AI curve.

Published estimates place a quantized 70B dense model within the 96GB M5 Ultra configuration, with estimated performance around the mid-20-token-per-second range for one current example.

That makes the 70B class a useful benchmark for buyers.

If your goal is high-quality local reasoning and coding rather than simply experimenting with tiny models, 96GB can already be a serious starting point.

100B and Larger Models

Once you move beyond 100B parameters, memory configuration becomes more important.

Some modern MoE models can have very large total parameter counts while activating only a smaller subset for each token. That means parameter count alone does not tell you how fast a model will run.

For example, published M5 Ultra estimates show some 100B-plus MoE models with considerably higher estimated throughput than similarly sized dense models.

This is one reason your model-selection process should consider architecture, not just parameter count.

400B-Class Models

This is where 512GB becomes particularly interesting.

A published M5 Ultra analysis estimates that a quantized 405B dense model can fit within a 512GB configuration, although estimated generation speed is dramatically lower than smaller models.

That leads to an important distinction:

Can run does not necessarily mean runs fast enough for interactive use.

For a researcher who values local access to a very large model, that may still be worthwhile. For someone expecting instant chatbot responses, it probably is not.

What M5 Ultra Mac Studio Local AI Performance Actually Feels Like

Tokens per second is useful, but it is not the entire story.

Three measurements matter:

• Prefill: how quickly the system processes the input
• Decode: how quickly it generates new tokens
• Time to first token: how long you wait before output begins

This becomes particularly important for AI agents.

A coding agent may send a huge system prompt, project context, tool history, and source files before producing a short answer. If the machine processes that input slowly, the workflow feels sluggish even if its final generation speed is impressive.

Independent M5 Ultra testing shows why this distinction matters. A public benchmark repository reports roughly 3x to 4x gains in prompt processing over an M3 Ultra across several tested models, while output generation improved by roughly 1.5x in those examples.

That means the M5 Ultra’s biggest practical improvement can be getting large contexts into the model faster, not simply producing more output tokens per second.

Why Tokens Per Second Can Mislead

Suppose Computer A generates 60 tokens/sec and Computer B generates 45 tokens/sec.

Computer A sounds faster.

But if Computer B processes a large prompt much faster, B could feel better for an agent that repeatedly reads tens of thousands of tokens.

This is why a serious local-AI comparison should report:

Prefill + decode + first-token latency + context size

rather than one headline tokens/sec number.

96GB vs 256GB vs 512GB: Which M5 Ultra Should You Buy?

The right configuration depends on the models you intend to run.

Configuration	Best for	Verdict
96GB	Small/medium LLMs, coding, development, AI experimentation	Best starting point for most local-AI users
256GB	Large LLMs, advanced coding agents, research, multiple models	Best high-end balance
512GB	Extremely large models, multi-model workflows, research and experimentation	For users who specifically need maximum model capacity

Apple lists the M5 Ultra at 96GB with options for 256GB and 512GB. The 512GB configuration is especially important for users targeting enormous local models.

Who Should Buy 96GB?

Choose 96GB if you primarily want:

• Local coding assistants
• 7B-70B-class experimentation
• Private chat
• Document analysis
• AI development
• Image-generation experiments
• General Apple development

You should not buy 512GB simply because the number looks impressive.

Who Should Buy 256GB?

256GB is the configuration to consider if local AI is a serious part of your work.

It provides substantially more room for large models, long contexts, multiple applications, and experimentation without jumping immediately to the most expensive configuration.

For many serious AI developers, this is likely to be the most interesting balance between capacity and cost.

Who Should Buy 512GB?

The 512GB configuration makes sense when model capacity itself is the reason you are buying the machine.

Think:

• Very large dense models
• Multiple large models
• Long-context research
• Experimental local AI infrastructure
• Large agent systems
• AI research where cloud inference is undesirable

If you never intend to run models that need hundreds of gigabytes, spending heavily on 512GB may produce little practical benefit.

Running Local AI With MLX, Ollama and LM Studio

Hardware is only half the local-AI equation.

The software stack can change the experience dramatically.

MLX on Apple Silicon

MLX is Apple’s open-source machine-learning framework optimized for Apple Silicon. Apple specifically positions MLX as a framework for running, training, and fine-tuning models on Mac.

For developers who want to work close to the Apple Silicon hardware, MLX is one of the most important technologies to understand.

Ollama

Ollama provides a relatively simple way to run local models and expose them to applications through a local API.

It is attractive if you want local AI without building your own inference stack from scratch.

LM Studio

LM Studio provides a graphical approach to discovering, downloading, configuring, and running local models.

Apple itself cites LM Studio when discussing M5 Ultra’s local AI performance.

llama.cpp and Metal

The llama.cpp ecosystem remains important because many Mac local-AI applications build around its capabilities and Apple GPU acceleration.

The practical lesson is simple:

Do not compare Mac hardware without also considering the inference engine.

The same model can behave differently depending on whether it runs through MLX, llama.cpp, or another backend.

Is M5 Ultra Good for AI Coding and Agents?

Yes, particularly when your workflow benefits from local models, large contexts, and persistent agent sessions.

AI coding agents can generate a surprisingly large amount of context. They may need to read source files, tests, documentation, terminal output, tool results, and previous reasoning.

That makes the M5 Ultra’s fast memory subsystem especially relevant.

Independent testing of M5 Ultra systems has reported substantial improvements in prompt processing compared with the M3 Ultra, including large gains as context length increases.

Local Coding Models

The M5 Ultra is attractive when you want to run coding models locally without sending source code to an external AI service.

The benefit is not only privacy.

You also avoid:

• API usage fees
• rate limits
• per-token charges
• dependency on an external service

But local models still have quality and speed trade-offs compared with the strongest cloud models.

Long-Context Coding

Long context is where memory capacity becomes increasingly valuable.

A model that works beautifully with a short prompt may behave very differently when you feed it a large repository.

This is another reason to avoid judging a local AI workstation solely by a short benchmark.

Where Cloud AI Still Wins

Cloud AI remains attractive when you need:

• The newest proprietary models
• Very large reasoning models
• Minimal setup
• Fast scaling
• No hardware maintenance
• Access from multiple devices

The best solution for many developers will therefore be hybrid:

Cloud AI for frontier capabilities + local AI for private, repetitive, or high-volume work.

What About Image and Video AI?

The M5 Ultra is not limited to text models.

Apple specifically highlights local text-to-image performance and its expanded media capabilities. Apple claims up to 8.2x faster text-to-image performance versus M1 Ultra in its selected workload.

However, software support matters enormously.

A model may theoretically run on Apple Silicon while still having weaker optimization or fewer features than its CUDA counterpart.

For image generation, evaluate:

• Native Apple Silicon support
• Metal or MLX optimization
• Model compatibility
• Memory requirements
• Generation speed
• Availability of extensions and workflows

For video generation, memory capacity can again become important because video models can be extremely demanding.

M5 Ultra vs NVIDIA for Local AI

The M5 Ultra should not be marketed as universally better than NVIDIA.

It is better suited to certain problems.

Choose M5 Ultra When:

• You want very large unified memory
• You prefer macOS
• You want a compact workstation
• Local LLM inference is a major workload
• You want Apple Silicon development
• You value quiet desktop hardware and power efficiency
• You want to experiment with very large models locally

Apple also supports clustering multiple Mac Studio systems over Thunderbolt 5 and RDMA for distributed AI inference.

Choose NVIDIA When:

• CUDA compatibility is essential
• You need the broadest AI software ecosystem
• GPU training is a major priority
• You need mature enterprise AI infrastructure
• Your software stack is already built around NVIDIA GPUs

Independent testing makes the distinction clearer. Tom’s Hardware found the M5 Ultra exceptionally strong for local model inference, while NVIDIA remains a major alternative for workloads that depend on traditional discrete-GPU compute and its software ecosystem.

M5 Ultra vs DGX Spark

The comparison is especially interesting because both target compact local AI workloads.

Tom’s Hardware reported faster prompt processing and higher tokens-per-second performance from the M5 Ultra in its local-AI testing against the DGX Spark.

But benchmark leadership in one local model does not mean every AI workload will favor the Mac.

The software stack remains decisive.

Is the M5 Ultra Mac Studio Worth It for Local AI?

For the right user, yes.

The M5 Ultra’s strongest argument is not that it replaces every NVIDIA workstation. Its advantage is that it combines very large unified memory, high memory bandwidth, compact hardware, and an Apple-native AI development ecosystem in one desktop.

The biggest reason to buy it is therefore straightforward:

You want to run models locally that would otherwise require a much larger or more complicated workstation.

Best Reasons to Buy

• You need huge unified memory
• You run local LLMs regularly
• You build AI coding agents
• You work with large contexts
• You want local/private inference
• You develop on Apple Silicon
• You want a compact AI workstation

Reasons Not to Buy

• You mostly use ChatGPT or other cloud AI
• You need CUDA-specific software
• You primarily train large models
• You do not need more than 96GB of memory
• You are buying the 512GB model only because it sounds future-proof

The last point matters.

Future-proofing is not the same as buying maximum RAM.

If your workloads fit comfortably into 96GB or 256GB, the additional cost of 512GB may not improve your actual workflow.

The Best M5 Ultra Mac Studio Local AI Configuration Depends on Your Models

Use this simple decision rule:

If your priority is…	Recommended direction
Local AI experimentation	96GB
AI coding and development	96GB-256GB
70B-class local models	96GB can be sufficient with suitable quantization
Large 100B+ models	256GB
Multiple large models	256GB-512GB
Very large dense models	512GB
AI research and extreme experimentation	512GB
General Mac Studio work with occasional AI	M5 Max may be more sensible

For buyers who do not specifically need M5 Ultra memory capacity, the M5 Max is an important alternative.

Check on Amazon: Apple 2026 Mac Studio Desktop Computer with M5 Max

Frequently Asked Questions About M5 Ultra Local AI

The Bottom Line for Local AI Buyers

The M5 Ultra Mac Studio is not simply a faster Mac Studio.

It is a different class of local-AI machine because its combination of up to 512GB unified memory and 1.2TB/s bandwidth changes which models you can realistically keep on your desktop.

But the smartest buying decision is not automatically “buy 512GB.”

Start with the models you actually want to run. Check their quantized memory footprint. Add room for context, KV cache, applications, and the operating system. Then choose the smallest configuration that gives you comfortable headroom.

For most serious local-AI developers, 256GB is the configuration worth examining closely. For extreme model experimentation, 512GB is the real differentiator. For developers whose workloads stay in the smaller and medium model range, 96GB may already be enough.

That is the real story behind the M5 Ultra Mac Studio for local AI: the machine’s value is determined less by its headline core count than by how much AI you can keep in memory and how efficiently you can work with it.

Check the current Mac Studio options and compare configurations.
